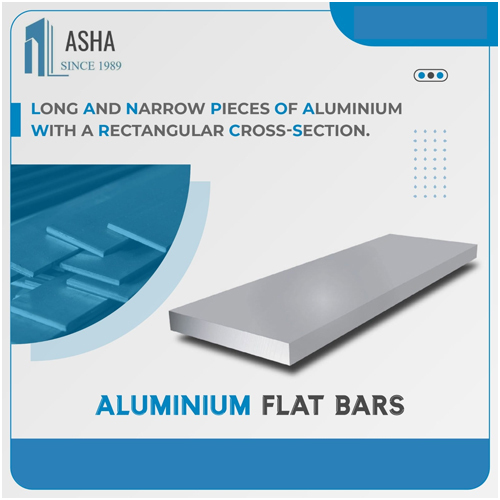

25mm X 3mm Aluminium Flat Bus Bar

25mm X 3mm Aluminium Flat Bus Bar Price And Quantity

• Price 290.0 INR/Kilograms
• Minimum Order Quantity 250 Kilograms

• Custom Length Available Yes
• Standard IS 5082
• Electrical Conductivity Minimum 55% IACS
• Elongation 8% (approx)
• Packing Type Bundle packing or as per requirement
• Weight (approx.) 0.20 kg/m
• Compliance RoHS compliant
• Max Working Temperature Up to 105C
• Density 2.7 g/cm3
• Edge Type Square/rounded (as per request)
• Tensile Strength 150 MPa

25mm X 3mm Aluminium Flat Bus Bar Product Specifications

• Finish Smooth, Mill finish
• Product Type 25mm X 3mm Aluminium Flat Bus Bar
• Dimension (L*W*H) Customized, e.g., 25mm x 3mm x required length
• Usage & Applications Electrical panel boards, bus duct, switchgear, control panels, power distribution systems
• Corrosion Resistant Yes
• Color Silver
• Size 25mm x 3mm
• Cross Dimension 25mm x 3mm
• Length Customizable, commonly up to 6 meters
• Material Grade Conforming to IS 5082 or equivalent
• Shape Flat
• Surface Treatment Polished
• Width 25mm
• Grade 6063, 6101 or 63401 (as per requirement)
• Outer Diameter N/A (flat profile)
• Fabrication Process Extruded
• Thickness 3mm
• Strength High Strength
• Hardness 60-80 HB (Brinell)
• Temper T6 or as specified
• Diameter N/A (flat profile)
• Material Aluminium
• Features Lightweight, good conductivity, corrosion resistant, easy to fabricate

• Custom Length Available Yes
• Standard IS 5082
• Electrical Conductivity Minimum 55% IACS
• Elongation 8% (approx)
• Packing Type Bundle packing or as per requirement
• Weight (approx.) 0.20 kg/m
• Compliance RoHS compliant
• Max Working Temperature Up to 105C
• Density 2.7 g/cm3
• Edge Type Square/rounded (as per request)
• Tensile Strength 150 MPa

25mm X 3mm Aluminium Flat Bus Bar Trade Information

• Payment Terms Cash in Advance (CID)
• Supply Ability 5000 Kilograms Per Month
• Delivery Time 7-10 Days
• Main Domestic Market All India
